Introduction

With a strong focus on innovation, ZKTeco offer a wide range of software products and solutions, supported by an extensive collection of software copyrights and patented smart terminal techniques. Their professional teams specialize in the development and supply chain management of smart terminals for various passages.

At AA2000, one of the leading suppliers of ZKTeco parking barriers in the Philippines. We provide comprehensive system integration services, combining our cutting-edge technologies with their expertise in parking solutions.

ZKTeco's smart entrance control solutions, including the advanced ZKTeco parking barrier, have applications in smart traffic management, secure financial services, innovative education systems, advanced healthcare solutions, and efficient government operations. Our goal is to create smarter environments that enhance convenience, security, and efficiency.

Join us in revolutionizing entrance and exit management with ZKTeco's smart solutions, including the state-of-the-art ZKTeco parking barrier. Experience the power of seamless and secure access control in various industries.

Key Features

• Supports external infrared radiation and vehicle loop detector for anti-crash function
• Die-casting aluminum alloy motor with double strong springs makes the operation more stable

• Wheel manual release in case of power cut, rotate the wheel manual release on the bottom of the motor to raise the bottom manually

• The housing with modularized design is made of powder coated steel which offers best protection against corrosion

• Built-in cooling fan, solving the problem of heat-protection, operating temperature of motor range from -40°C-+140°C

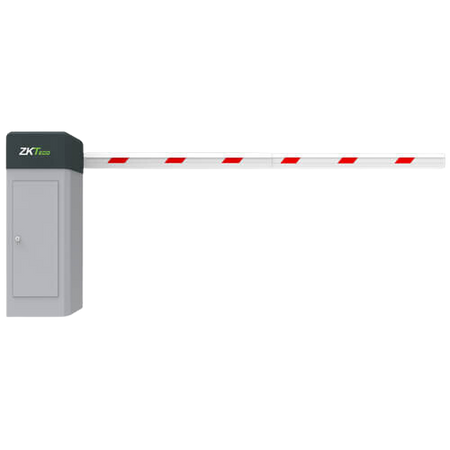

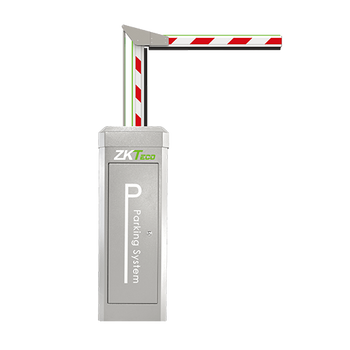

PB4000 PARKING BARRIER

Reliable, durable, and low-maintenance parking barrier.

PRICE

Specifications

Model: PB4000 / PB4130 / PB4030-LED /

Boom type: Telescopic boom / 90° folding boom /

Straight boom with LED light

Boom length: 4m / 6m / 3m

Opening/closing time: 3s / 6s

Supply voltage: 110V AC or 220V AC

Power consumption: 120W

Frequency: 50 - 60Hz

Cabinet material: Powder coated steel

Boom material: Aluminum alloy

Working temperature range: -20°C ~ +60°C

Working humidity range: <_90%

Housing dimensions: 328 (D)*286 (W)*934 (H) mm

Packing dimensions: 460 (D)*420 (W)*1150 (H) mm

Net weight: 60 kg

Gross weight: 70 kg

Key Benefits

1. Long-lasting Performance
2. High Reliability

3. Enhanced Quality

4. Easy Maintenance

5. Optimal Control Management

6. Improved Efficiency


Key Features

• Better experience with auxiliary traffic lights in the main body
• Support anti-smash and automatic closing with an infrared detector, loop detector, radar detector

• Arm direction can be exchanged between leftward and rightward according to site application

• Opening and closing angle of 90° ±2°

• Over voltage protection

• Support LPR, UHF reader controller and other devices for recognition and other A&C functions

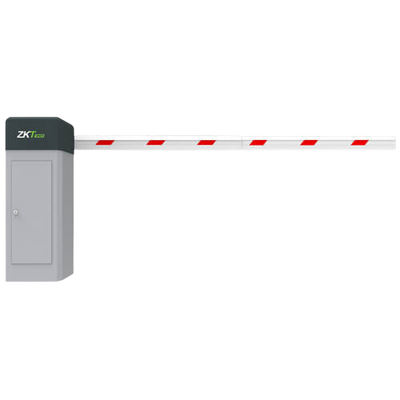

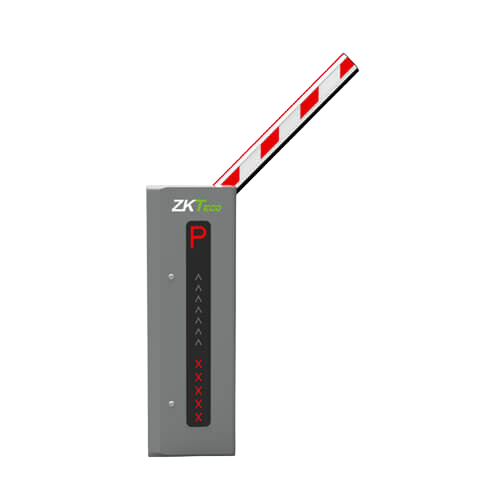

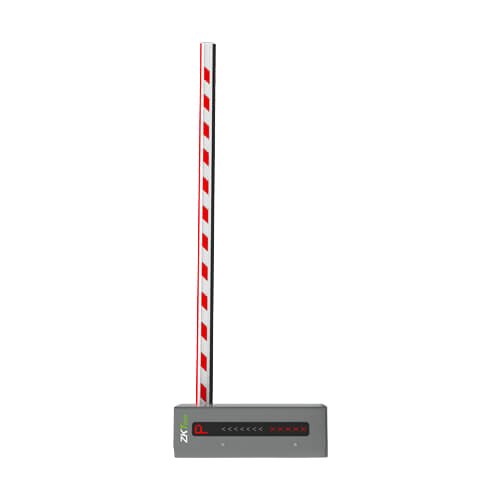

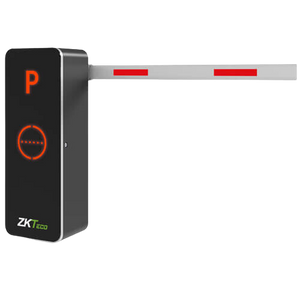

CMP200 PARKING BARRIER

Seamless Control. Enhanced User Experience.

PRICE

Specifications

Boom Type: Telescopic boom, Straight boom with LED, Folding boom

Boom Length: 4.5m, 6m

Opening / Closing Time: 3s (max 4.5m), 6s (max 6m)

Supply Voltage: AC110V/220V, 50/60Hz

Power Consumption: 100W (max. 120W)

Remote Controlling Distance: <_30m

Remote Controlling Frequency: 430MHz

Cabinet Material: Cold rolled steel

Boom Material: Aluminum and wood

Motor MCBF: 1 million times

Working Temperature Range: -25°C ~ +75°C

Working Humidity Range: <_90%

Housing Dimensions (D*W*H): 350 * 280 * 1010 (mm)

Packing Dimensions (D*W*H): 420 * 405 * 1100 (mm)

Net Weight: 45kg

Gross Weight: 47kg

Key Benefits

1. Versatile Direction Exchanging
2. Enhanced User Experience

3. Humanized Design

4. Reliable Performance

5. Economic Fit

6. Market-Driven Solution

7. Easy Installation and Maintenance

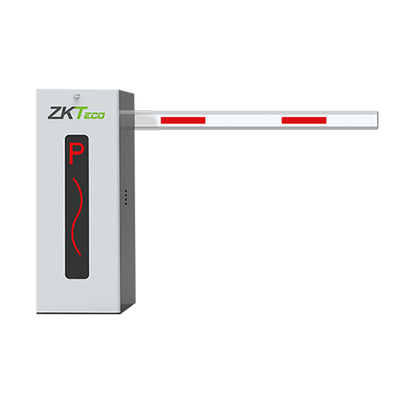

Key Features

• DC 24V brushless motor with encoder
• Embedded programmable controller

• Automatic obstacle detection

• Reversible boom direction

• Backup battery connection

• Adjustable angle of rise/fall

• Adjustable opening and closing speed

• Barrier arm’s length from 3m to 6m

• Streamline casing with LED

• Emergency opening

• Automatic delay closing

• Optional a heater system

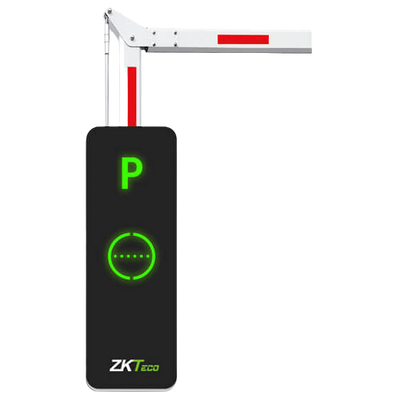

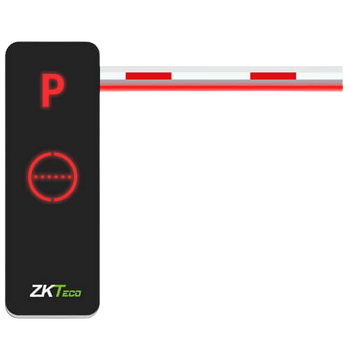

Key Features

• Humane interaction design. Standard case is equipped with LED indicator and LED light strip is optional for the boom
• Mean Cycles Between Failure (MCBF) has reached 5 million times. Product lifespan is 10 times longer than traditional barrier gate.

• Gate’s opening / closing speed are lightning-fast and can widely adjust from 0.9s-10s, depends on vehicle flow and boom length.

• Good temperature resilience. Able to work under -40°C—+ 75°C outdoor

• Small abrasion, no mechanical impact and impact absorption in motion

• Boom will be automatically raised when power off, no need for manual operation.

• Boom will stop or return when encounters blockage. Standard package with impact-resistance rubber strip

• Installation and boom’s direction switching are easy and can be done on site

• Support fleet mode and open recording function. Gate will close after vehicle sensor has detected specified amount of vehicle pass.

• Support wide range of 100-240V DC and 24V battery

• Low power consumption and energy saving design, the barrier gate can save ~500kWh per year

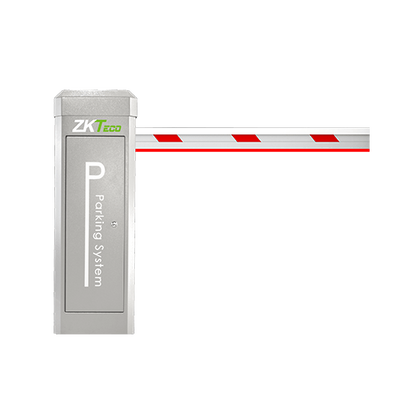

Model: ProBG3000, ProBG3100, ProBG3030 L/R, ProBG3045 L/R, ProBG3060 L/R, ProBG3030 L/R-LED, ProBG3045 L/R-LED, ProBG3060 L/R-LED, ProBG3130 L/R, ProBG3130 L/R -LED

Motor Type: Servomotor

Boom Type: Straight boom, 90° Folding boom

Boom Length: Support 3m/4.5m/6m (Can be adjusted)

Operation Times (s): 2.5s, 4.5s, 0.9s

Protection Level: IP54

Operating Temperature: -40°C~+75°C

Power Supply: 24V DC, AC 100~240V

Controller Frequency: 50-60Hz

Power Consumption: 100W

Case Material: Powder coated steel

Case Dimensions: 360*330*1000mm

Net Weight: 48kg

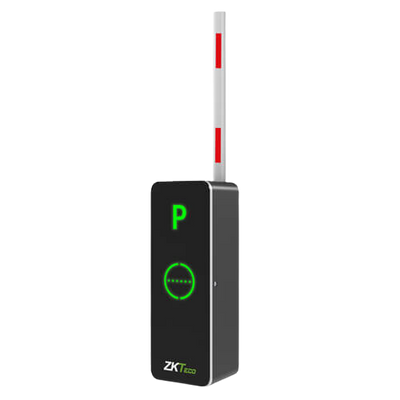

Key Features

• LED light strip is optional for the boom.
• Mean Cycles Between Failure (MCBF) is upto 5 million times. The product lifespan is 10 times longer the traditional barrier gate

• The gate's opening/closing speed is quick and can widely adjust from 0.9s-10s, depends on the vehicle flow and boom length.

• It can operate normally at temperature as low as -45°C and as high as 75°C

• Wear-resistant, no mechanical impact, and impact absorption in motion.

• Automatically detects Power-off and lifts the boom

• When a Vehicle hits the boom, it swings out to avoid further damage. It has impact-resistance rubber strip

• Supports fleet mode and open recording function. Gate can be closed after vehicle sensor has detected specified number of vehicles passed.

• Supports global standard voltage of 100-240V AC and 24VDC low voltage power supply

• Low power consumption and energy saving design. Its barrier gate can save up to 500kWh per year

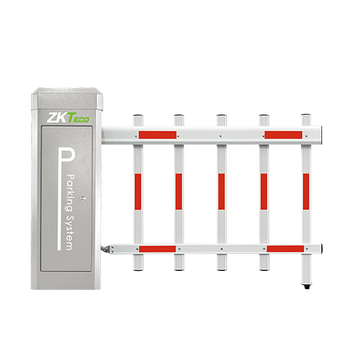

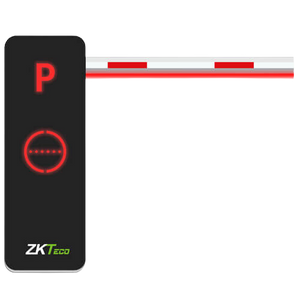

PROBG2000 PARKING BARRIER

Performance and Speed for Every Market

Specifications

Model: ProBG2000, ProBG2100, ProBG2200

Motor Type: Servo Motor

Boom Type: Straight boom, 90° Folding boom, Fence boom

Boom Length: Supports 3m/4m/4.5m/6m (adjustable)

Level: IP54

Operating Temperature: -40°C to +75°C

Power Supply: 24V DC, AC 100 to 240V AC

Controller Frequency: 50 to 60Hz

Power Consumption: 100W

Case Material: Powder coated steel

Case Dimensions: 330*330*970mm

Net Weight: 48kg

Key Benefits

1. High Performance and Speed
2. Reliable Servo Motor

3. Simple and Reliable Transmission Structure

4. High Temperature Resistant Control Panel

5. Impact Protection Design

6. Cost-Effective Solution

7. Functionality Similar to ProBG3000
